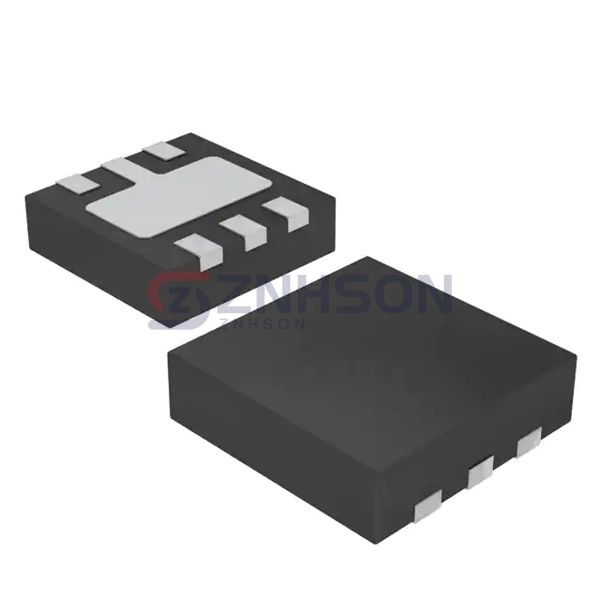

AP22804BSN-7
Diodes Incorporated
Diodes Incorporated
IC PWR SWITCH P-CHAN 1:1 6UDFN
$0.18
Available to order
Reference Price (USD)
3,000+
$0.27225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AP22804BSN-7 Load Driver IC by Diodes Incorporated is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the AP22804BSN-7 delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose Diodes Incorporated for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Active
- Switch Type: USB Switch
- Number of Outputs: 1
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: P-Channel
- Interface: On/Off
- Voltage - Load: 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 2.5A
- Rds On (Typ): 50mOhm
- Input Type: Non-Inverting
- Features: Load Discharge, Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6
- Package / Case: 6-UDFN Exposed Pad
