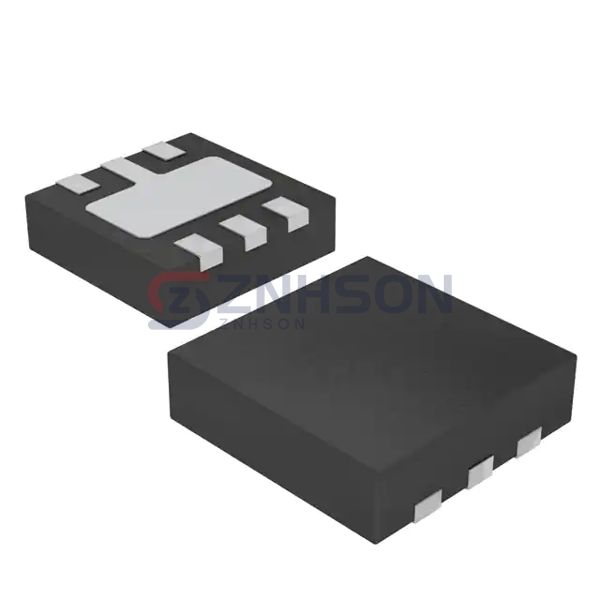

AP2511SN-7
Diodes Incorporated
Diodes Incorporated
IC PWR SWITCH P-CH 1:1 6DFN2020
$0.43
Available to order
Reference Price (USD)
3,000+
$0.16188
6,000+
$0.15313
15,000+
$0.14438
30,000+
$0.13388
75,000+
$0.12950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AP2511SN-7 Load Driver IC by Diodes Incorporated is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the AP2511SN-7 delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose Diodes Incorporated for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Active
- Switch Type: USB Switch
- Number of Outputs: 1
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: P-Channel
- Interface: On/Off
- Voltage - Load: 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 2.5A
- Rds On (Typ): 70mOhm
- Input Type: Non-Inverting
- Features: Load Discharge, Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6
- Package / Case: 6-UDFN Exposed Pad
Related Products
Richtek USA Inc.
RT9742GGJ5
Diodes Incorporated
PI5USB2546AZHEX
Torex Semiconductor Ltd
XC8107AC20MR-G
Microchip Technology
MIC2091-1YM5-TR
Texas Instruments
TPS2205IDB
Toshiba Semiconductor and Storage
TBD62083APG
Microchip Technology
MIC2560-0BWM
Infineon Technologies
BTS426L1E3062AAUMA1
Analog Devices Inc./Maxim Integrated

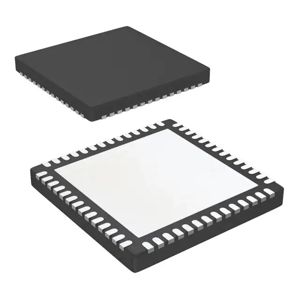

MAX14913AKN+T
