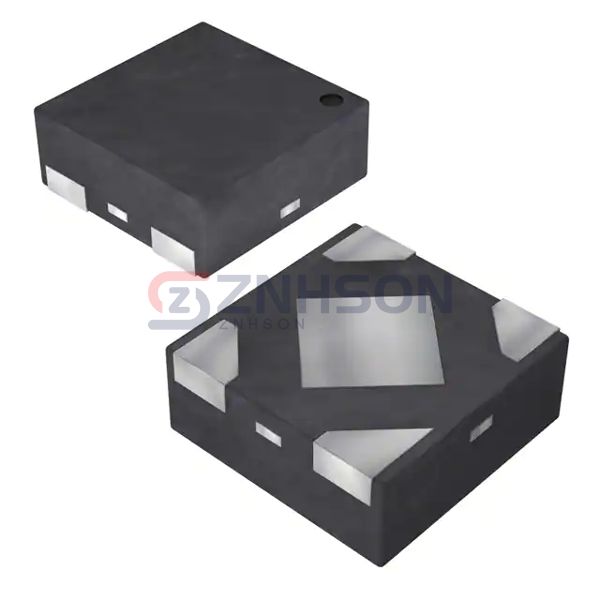

AP7315D-12FS4-7B
Diodes Incorporated
Diodes Incorporated
IC REG LINEAR 1.2V 150MA 4DFN
$0.14
Available to order
Reference Price (USD)
10,000+
$0.12825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AP7315D-12FS4-7B from Diodes Incorporated is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.25V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.64V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 60 µA
- Current - Supply (Max): 100 µA
- PSRR: 75dB (1kHz)
- Control Features: -
- Protection Features: Over Current
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 4-XDFN Exposed Pad
- Supplier Device Package: X2-DFN1010-4
Related Products
Texas Instruments
TLV70245QDSERQ1
Fairchild Semiconductor
ILC7081AIM530X
ABLIC Inc.
S-13R1A36-M5T1U3
Analog Devices Inc.
LT3065HMSE-1.5#PBF
Diodes Incorporated
AP7383-44W5-7
Analog Devices Inc./Maxim Integrated
MAX6469TA33AD3+
ABLIC Inc.
S-1333D13-M5T1U3
Diodes Incorporated

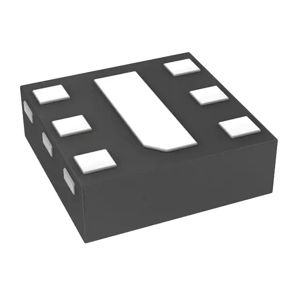

AP7346D-3328FS6-7
