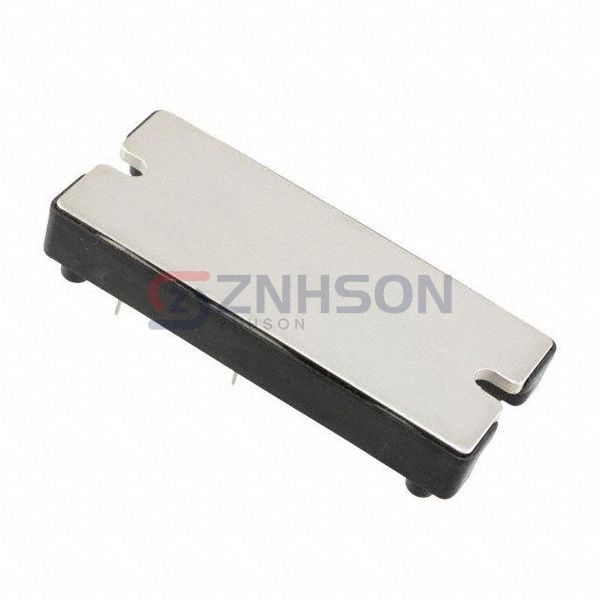

APTGT150DU120TG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 220A 690W SP4
$165.94
Available to order
Reference Price (USD)
100+
$82.70260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT150DU120TG from Microchip Technology is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the APTGT150DU120TG is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Microchip Technology's advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 220 A
- Power - Max: 690 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 150A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 10.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
