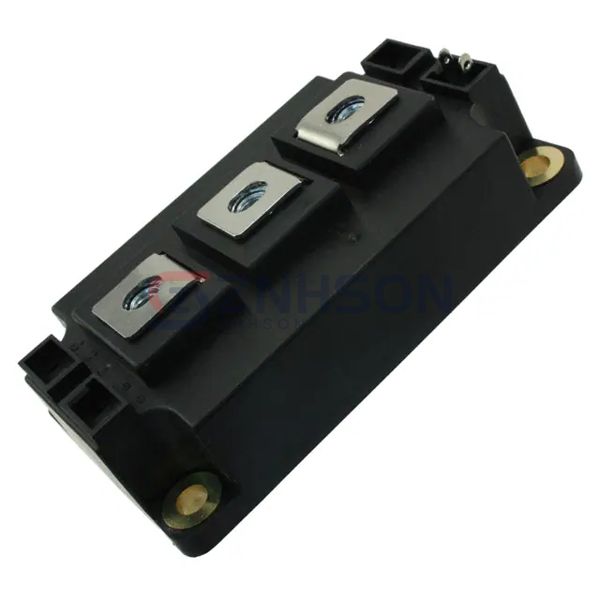

APTGT300SK60D3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 400A 940W D3
$161.59
Available to order
Reference Price (USD)
1+
$118.04000
10+
$110.32900
25+
$106.47080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the APTGT300SK60D3G IGBT module by Microchip Technology sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The APTGT300SK60D3G finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Microchip Technology continues to lead the IGBT module revolution with innovations like the APTGT300SK60D3G.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 400 A
- Power - Max: 940 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 300A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 18.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
