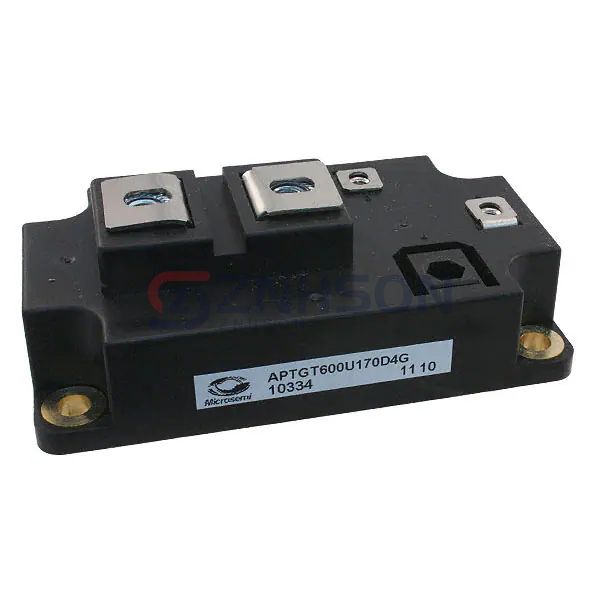

APTGT600U170D4G
Microchip Technology
Microchip Technology
IGBT MODULE 1700V 1100A 2900W D4
$404.87
Available to order
Reference Price (USD)
1+
$179.87000
10+
$171.18800
25+
$164.98520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT600U170D4G stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the APTGT600U170D4G enables higher power density in MRI gradient amplifiers. Choose Microchip Technology for IGBT modules that push performance boundaries.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1700 V
- Current - Collector (Ic) (Max): 1100 A
- Power - Max: 2900 W
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 600A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 51 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: D4
- Supplier Device Package: D4
