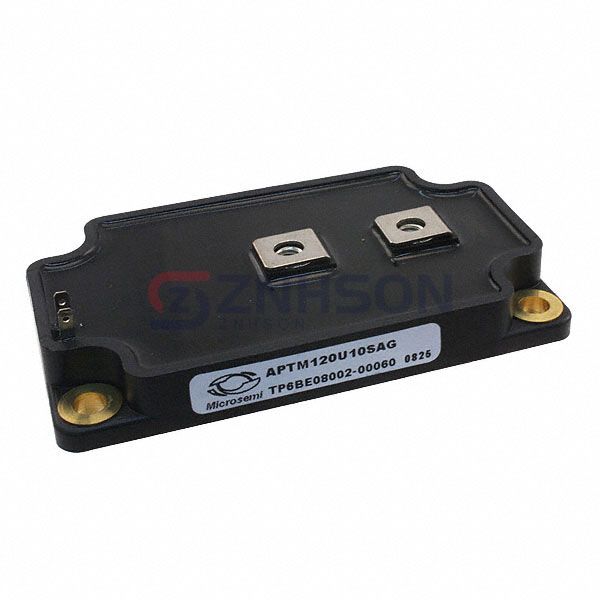

APTM120U10SAG
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 116A SP6
$337.48
Available to order
Reference Price (USD)
100+
$189.40580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the APTM120U10SAG by Microchip Technology, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The APTM120U10SAG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Microchip Technology.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 116A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 58A, 10V
- Vgs(th) (Max) @ Id: 5V @ 20mA
- Gate Charge (Qg) (Max) @ Vgs: 1100 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 28900 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3290W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP6
- Package / Case: SP6
