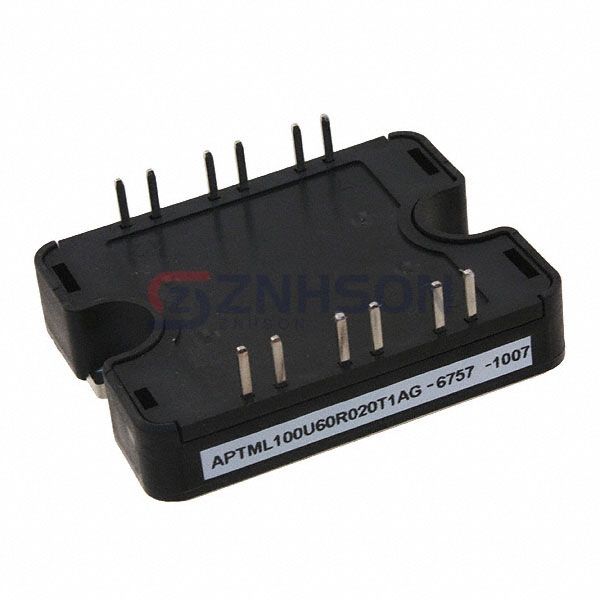

APTML100U60R020T1AG
Microchip Technology
Microchip Technology
MOSFET N-CH 1000V 20A SP1
$146.44
Available to order
Reference Price (USD)
1+
$122.05000
10+
$114.07700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTML100U60R020T1AG single MOSFET from Microchip Technology is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the APTML100U60R020T1AG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 720mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 6000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 520W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP1
- Package / Case: SP1
