ATF13-08PA-BM11
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

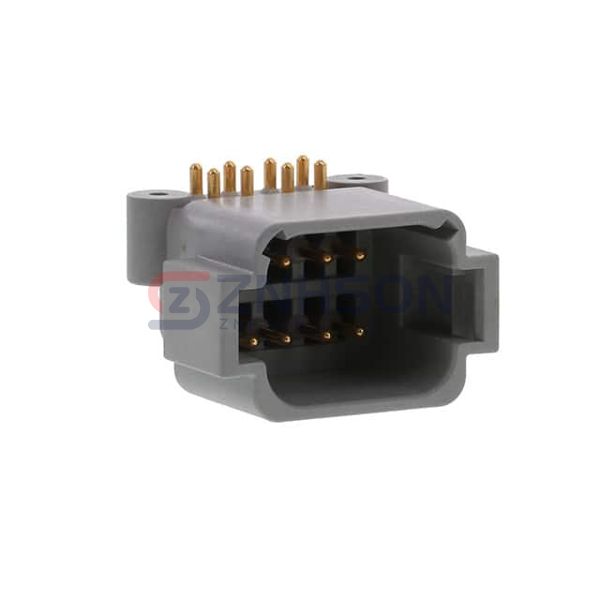

BOARD MOUNT HEADER, RIGHT ANGLE,
$17.46
Available to order
Reference Price (USD)
1+
$17.46000
500+
$17.2854
1000+
$17.1108
1500+
$16.9362
2000+
$16.7616
2500+
$16.587
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the ATF13-08PA-BM11 rectangular connector header from Amphenol Sine Systems Corp. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the ATF13-08PA-BM11 meets the highest industry standards. Amphenol Sine Systems Corp provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.917" (23.29mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 13A
- Voltage Rating: 250VDC
