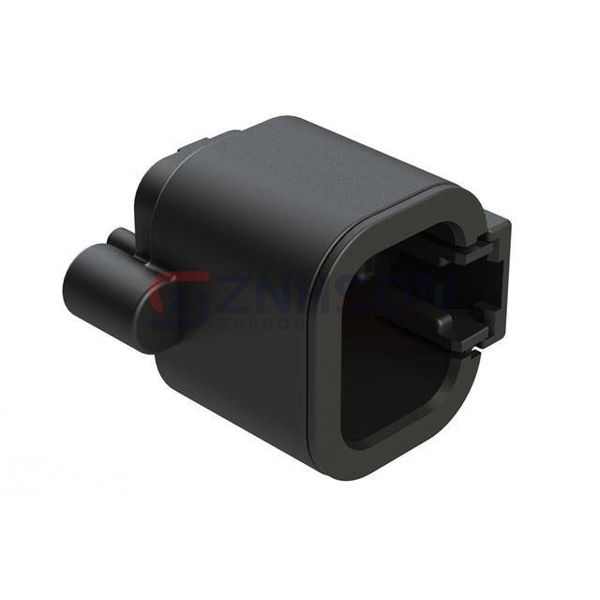

ATP04-4P-BM13
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
4 POSITION, STRAIGHT PCB RECEPTA
$7.66
Available to order
Reference Price (USD)
1+
$7.66000
500+
$7.5834
1000+
$7.5068
1500+
$7.4302
2000+
$7.3536
2500+
$7.277
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ATP04-4P-BM13 rectangular connector header from Amphenol Sine Systems Corp, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the ATP04-4P-BM13 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol Sine Systems Corp guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.264" (6.71mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.400" (10.16mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 1.126" (28.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Sealed
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 25A
- Voltage Rating: -
