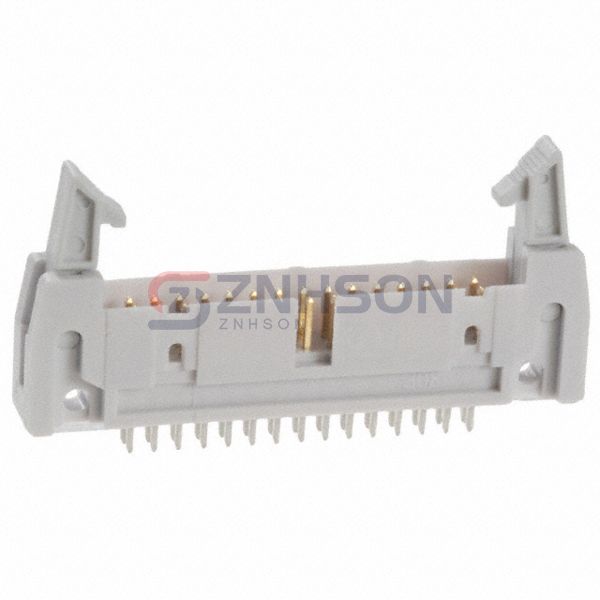

AWH 30G-0232-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER VERT 30POS 2.54MM
$1.90
Available to order
Reference Price (USD)
1+
$1.89643
500+
$1.8774657
1000+
$1.8585014
1500+
$1.8395371
2000+
$1.8205728
2500+
$1.8016085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWH 30G-0232-T by Assmann WSW Components is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the AWH 30G-0232-T supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Assmann WSW Components ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.669" (17.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
