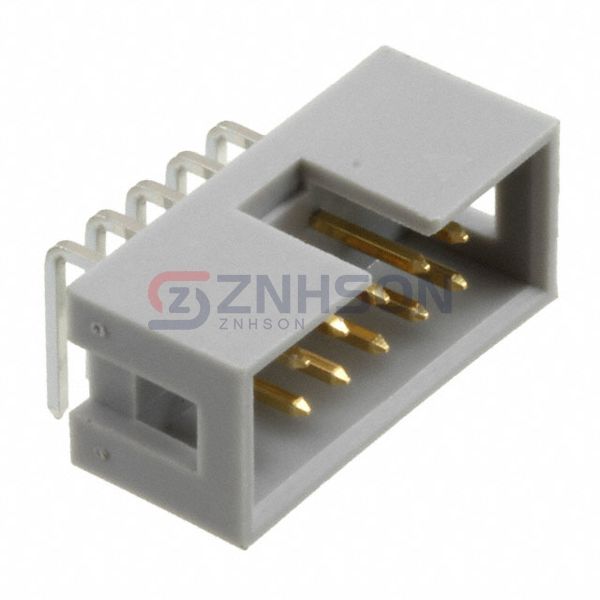

AWHW 10A-0102-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER R/A 10POS 2.54MM
$1.87
Available to order
Reference Price (USD)
1+
$1.87000
500+
$1.8513
1000+
$1.8326
1500+
$1.8139
2000+
$1.7952
2500+
$1.7765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWHW 10A-0102-T from Assmann WSW Components is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the AWHW 10A-0102-T offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Assmann WSW Components for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.224" (5.70mm)
- Contact Length - Post: 0.124" (3.15mm)
- Overall Contact Length: -
- Insulation Height: 0.352" (8.95mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
