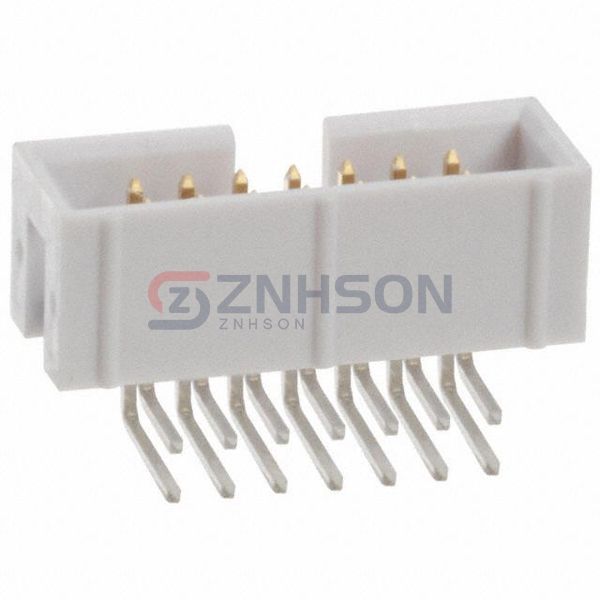

AWHW 14A-0202-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER R/A 14POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.89000
10+
$0.78500
220+
$0.67759
660+
$0.55439
1,100+
$0.49280
5,060+
$0.43120
10,120+
$0.40964
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWHW 14A-0202-T by Assmann WSW Components is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the AWHW 14A-0202-T supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Assmann WSW Components ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.224" (5.70mm)
- Contact Length - Post: 0.124" (3.15mm)
- Overall Contact Length: -
- Insulation Height: 0.352" (8.95mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
