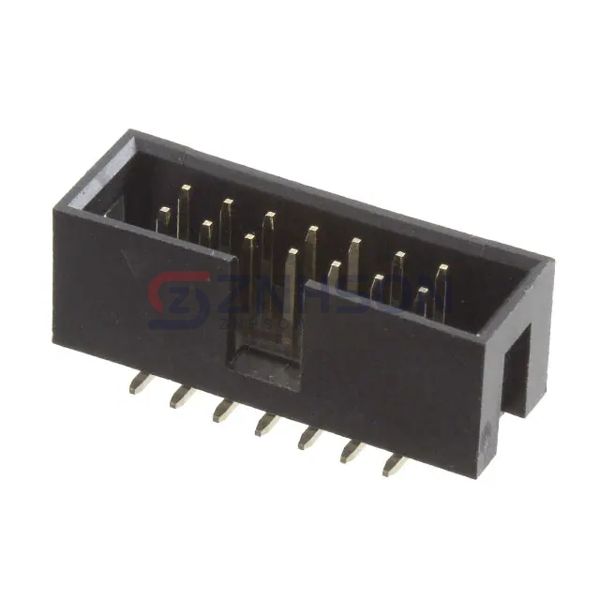

AWHW 14G-SMD
Assmann WSW Components
Assmann WSW Components
CONN HEADER SMD 14POS 2.54MM
$1.51
Available to order
Reference Price (USD)
1+
$1.44000
22+
$1.26500
110+
$1.09118
506+
$0.89281
1,012+
$0.79360
5,016+
$0.69440
10,010+
$0.65968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWHW 14G-SMD from Assmann WSW Components is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the AWHW 14G-SMD offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Assmann WSW Components for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.232" (5.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T, Glass Filled
- Features: Keying Slot, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
