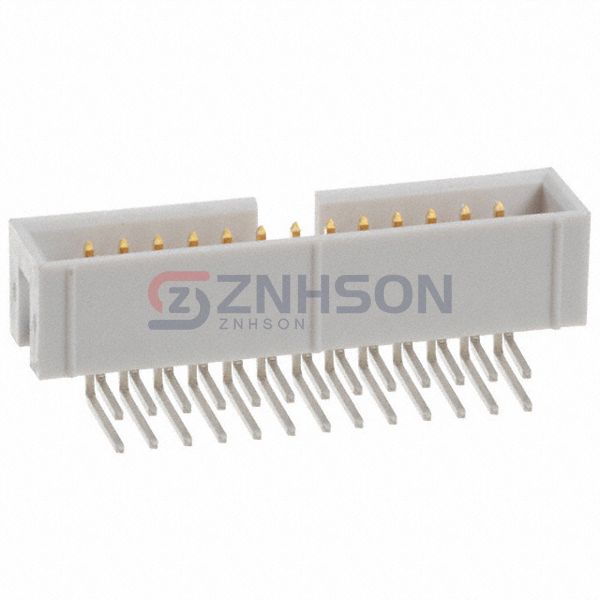

AWHW 26A-0202-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER R/A 26POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$1.40000
10+
$1.22900
140+
$1.06043
560+
$0.86761
1,120+
$0.77120
5,040+
$0.67480
10,080+
$0.64106
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the AWHW 26A-0202-T rectangular connector header from Assmann WSW Components. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the AWHW 26A-0202-T is perfect for automotive, industrial, and consumer electronics. Assmann WSW Components ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.224" (5.70mm)
- Contact Length - Post: 0.124" (3.15mm)
- Overall Contact Length: -
- Insulation Height: 0.352" (8.95mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
