AZ1117EH-1.5TRG1
Diodes Incorporated
Diodes Incorporated
IC REG LINEAR 1.5V 1A SOT223
$0.00
Available to order
Reference Price (USD)
4,000+
$0.07780
8,000+
$0.07002
12,000+
$0.06224
28,000+
$0.05835
100,000+
$0.05057
200,000+
$0.04979
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the AZ1117EH-1.5TRG1 linear voltage regulator IC by Diodes Incorporated, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this AZ1117EH-1.5TRG1 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 13V
- Voltage - Output (Min/Fixed): 1.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.3V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 6 mA
- Current - Supply (Max): -
- PSRR: 70dB (120Hz ~ 1kHz)
- Control Features: -
- Protection Features: Thermal Shutdown
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223-3
Related Products
Texas Instruments
TPS73201DCQG4
Texas Instruments
UA78L12ACDG4
Texas Instruments
LP8340CLDX-ADJ/NOPB
Texas Instruments
TPS75618KTT
Microchip Technology
MIC5319-1.85BD5-TR
Texas Instruments
LP3873ET-1.8/NOPB
onsemi
NCP3337MN250R2G
Toshiba Semiconductor and Storage
TCR2EE50,LM
Texas Instruments
LM340K-15/NOPB

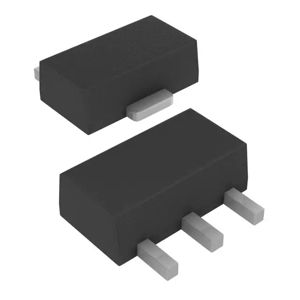

Nisshinbo Micro Devices Inc.
