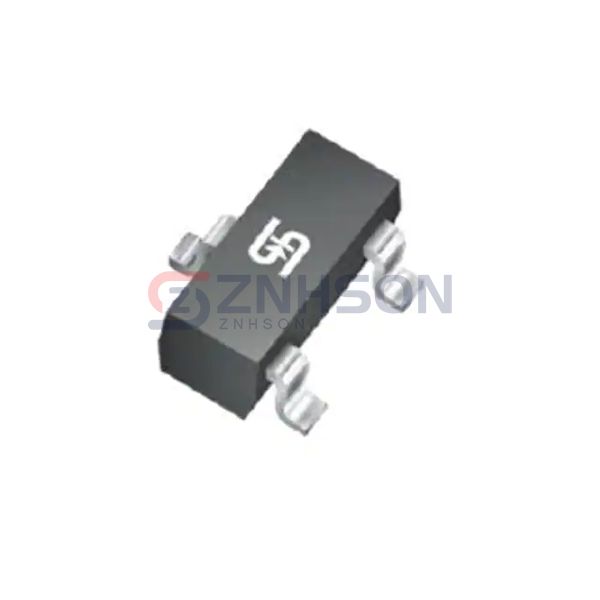

AZ23C47 RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER ARRAY 47V SOT23
$0.08
Available to order
Reference Price (USD)
3,000+
$0.06987
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AZ23C47 RFG Zener diode array by Taiwan Semiconductor Corporation sets new standards in discrete semiconductor components for voltage regulation needs. This innovative product integrates multiple Zener diodes with closely matched characteristics in a single compact package. Design highlights include excellent voltage regulation accuracy, low dynamic impedance, and superior thermal management properties. These arrays are particularly valuable in automotive ECU protection circuits, industrial automation systems, and power management modules where multiple voltage thresholds are required. The component's reliability and consistency make it a preferred choice for mission-critical applications across defense, medical, and telecommunications sectors.
Specifications
- Product Status: Active
- Configuration: 1 Pair Common Anode
- Voltage - Zener (Nom) (Vz): 47 V
- Tolerance: ±5%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 35 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
