B03B-JWPF-SK-R(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.

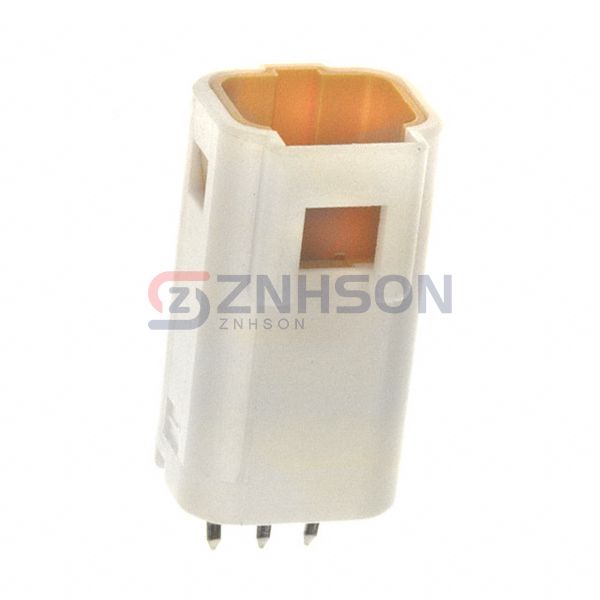

CONN HEADER VERT 3POS 2MM
$1.85
Available to order
Reference Price (USD)
1+
$1.81000
10+
$1.64000
100+
$1.40600
500+
$1.17162
1,000+
$1.00425
5,000+
$0.89044
10,000+
$0.87035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the B03B-JWPF-SK-R(LF)(SN) rectangular connector header from JST Sales America Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the B03B-JWPF-SK-R(LF)(SN) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. JST Sales America Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.654" (16.61mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 100V
