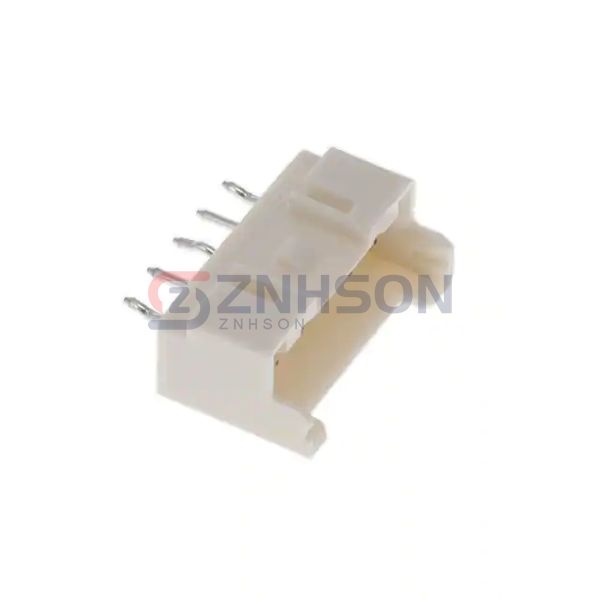

B05B-XASK-1N(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 5POS 2.5MM
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B05B-XASK-1N(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the B05B-XASK-1N(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Amphenol ICC (FCI)
98424-G52-08ALF
Samtec Inc.
TMM-108-01-T-D-RA
TE Connectivity AMP Connectors
2-640500-2
Sullins Connector Solutions
PBC17DFBN
Samtec Inc.
MMT-104-01-S-DH-K
Preci-Dip
800-10-014-30-001101
Mill-Max Manufacturing Corp.
335-90-130-00-160000
Samtec Inc.
TSM-106-01-LM-SH-A
Samtec Inc.

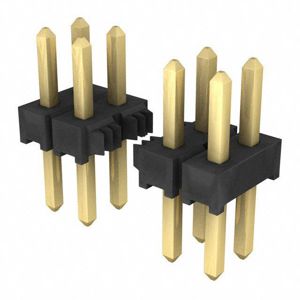

TMM-132-04-G-D
