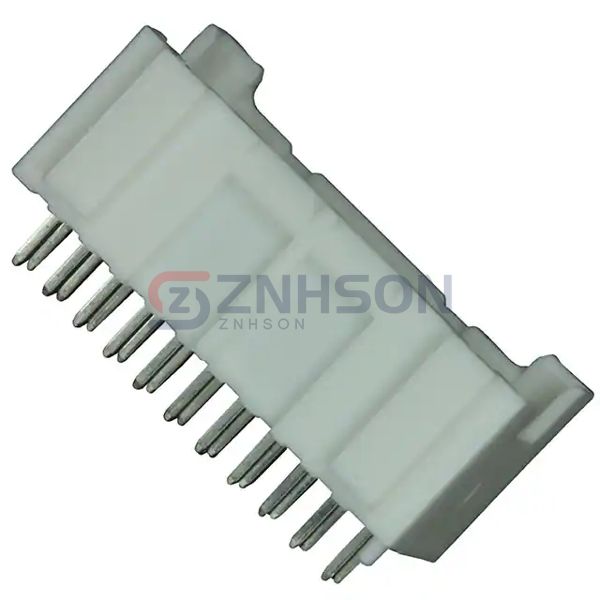

B22B-PADSS-1(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 22POS 2MM
$1.12
Available to order
Reference Price (USD)
1+
$1.09000
10+
$0.96100
100+
$0.82890
500+
$0.67816
1,000+
$0.60282
5,000+
$0.52747
10,000+
$0.50109
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the B22B-PADSS-1(LF)(SN) rectangular connector header from JST Sales America Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JST Sales America Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.402" (10.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
