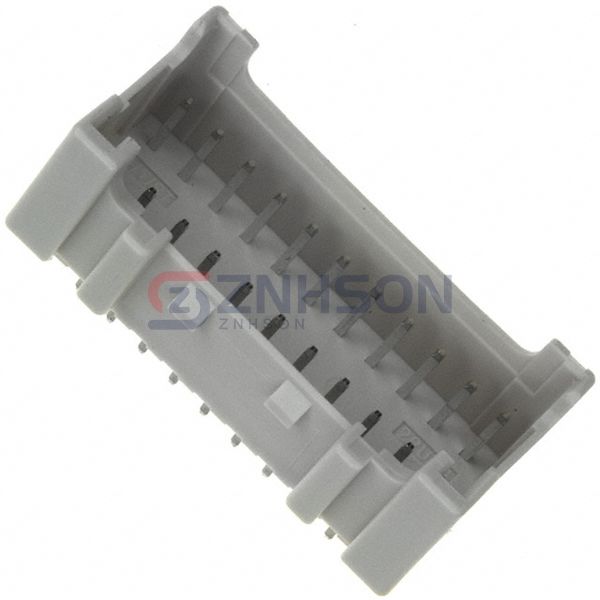

B22B-PNDZS-1(T)(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 22POS 2MM
$0.91
Available to order
Reference Price (USD)
1+
$0.86000
10+
$0.76100
288+
$0.59649
576+
$0.53686
1,152+
$0.47720
5,184+
$0.41755
10,080+
$0.39668
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the B22B-PNDZS-1(T)(LF)(SN) rectangular connector header from JST Sales America Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the B22B-PNDZS-1(T)(LF)(SN) meets the highest industry standards. JST Sales America Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Ivory
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Samtec Inc.
BKT-151-03-F-V-A
Molex
0901200936
Mill-Max Manufacturing Corp.
852-40-074-30-001000
Adam Tech
BHR-44-HUA
Molex
0436500927
Molex
0022289362
Samtec Inc.
MTSW-104-08-T-S-290
Samtec Inc.
TMM-101-01-F-D
Samtec Inc.

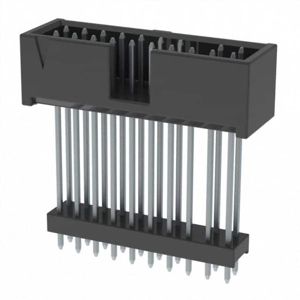

ZSS-110-06-T-D-1040-06
