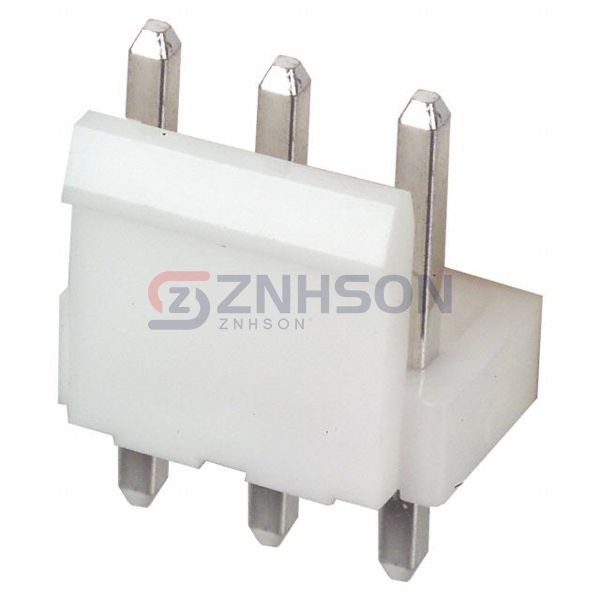

B3P-VH(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 3POS 3.96MM
$0.25
Available to order
Reference Price (USD)
1+
$0.24000
10+
$0.22700
100+
$0.15740
500+
$0.13322
1,000+
$0.10900
5,000+
$0.09689
10,000+
$0.08780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the B3P-VH(LF)(SN) rectangular connector header by JST Sales America Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the B3P-VH(LF)(SN) ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust JST Sales America Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 10A
- Voltage Rating: 250V
Related Products
Preci-Dip
350-80-123-00-013101
Adam Tech
2PH1R-05-UA
Samtec Inc.
TSM-113-01-L-DH-SL-K
Molex
0901310775
Samtec Inc.
TSW-147-17-G-S
HARTING
09185645921
Samtec Inc.
TLW-135-05-G-S
Molex
0026481092

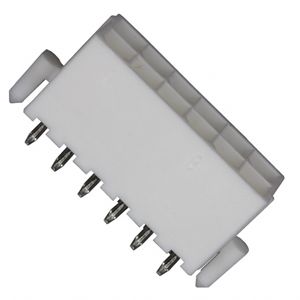

Molex
