B4PS-VH(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 4POS 3.96MM
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
10+
$0.33700
100+
$0.23580
500+
$0.20208
1,000+
$0.16841
5,000+
$0.14435
10,000+
$0.13473
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

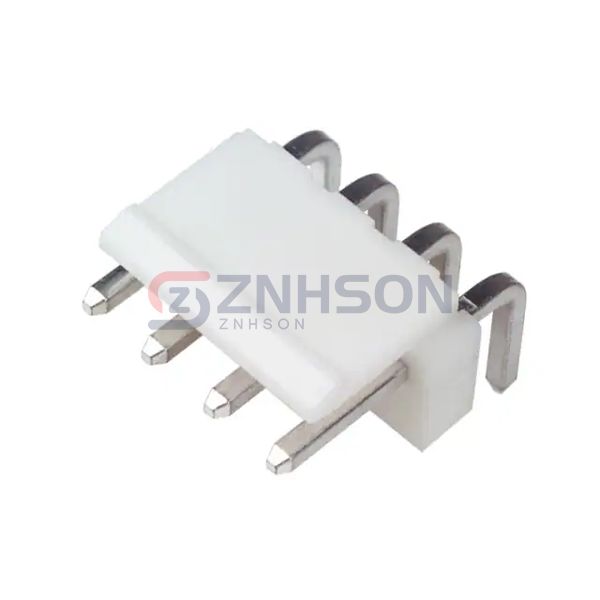

The B4PS-VH(LF)(SN) male pin header by JST Sales America Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. JST Sales America Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 10A
- Voltage Rating: 250V
