B5743-214-M-L-1
Harwin Inc.
Harwin Inc.
7+7 POS. MALE DIL HORIZONTAL THR
$9.64
Available to order
Reference Price (USD)
1+
$9.64095
500+
$9.5445405
1000+
$9.448131
1500+
$9.3517215
2000+
$9.255312
2500+
$9.1589025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

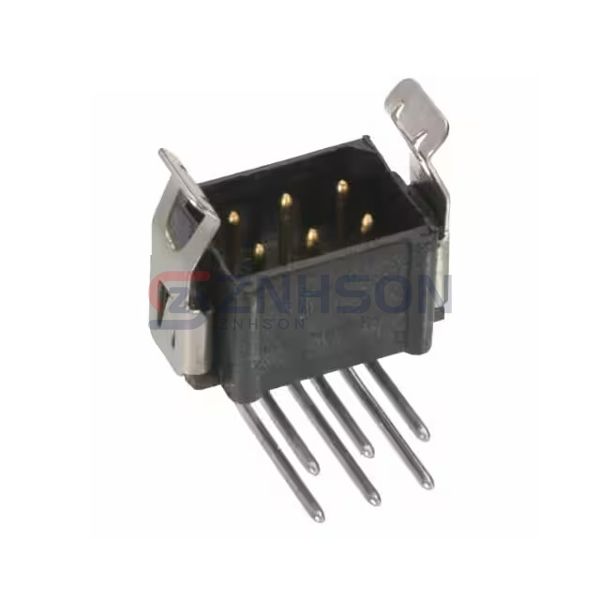

The B5743-214-M-L-1 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.235" (5.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Strain Relief Clips
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120VAC/DC
Related Products
Sullins Connector Solutions
PBC21SBEN
JST Sales America Inc.
BM30B-SRDS-A-G-TF(LF)(SN)
TE Connectivity AMP Connectors
644753-7
Sullins Connector Solutions
GRPB032VWVN-RC
Adam Tech
BHR-20-VSG-SMT
Molex
0022284312
Samtec Inc.

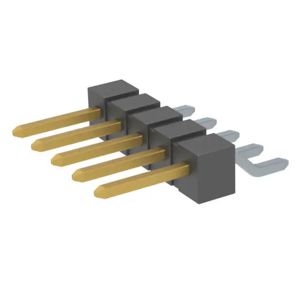

TSM-105-01-L-SH-K
Samtec Inc.

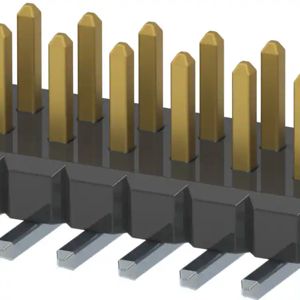

FTM-113-03-F-DV
