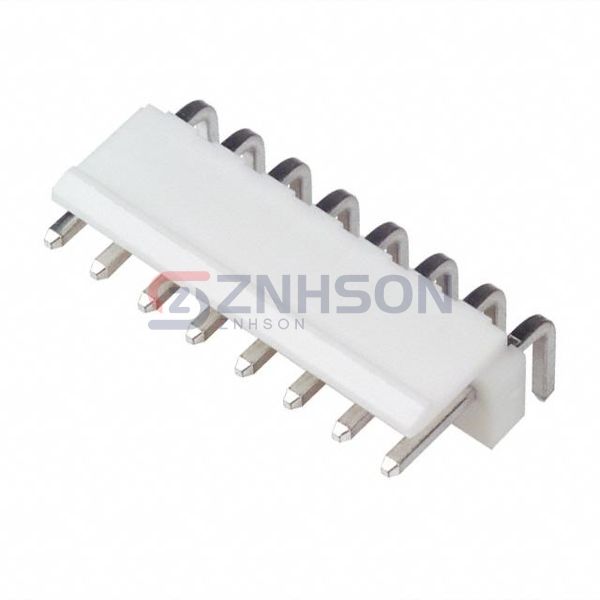

B8PS-VH(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 8POS 3.96MM
$0.62
Available to order
Reference Price (USD)
1+
$0.60000
10+
$0.56300
100+
$0.43180
500+
$0.37546
1,000+
$0.30975
5,000+
$0.27221
10,000+
$0.25344
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B8PS-VH(LF)(SN) by JST Sales America Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JST Sales America Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 10A
- Voltage Rating: 250V
Related Products
TE Connectivity Erni
354096
Samtec Inc.
FTMH-125-02-L-DH-K-TR
TE Connectivity AMP Connectors
2825261-2
Samtec Inc.

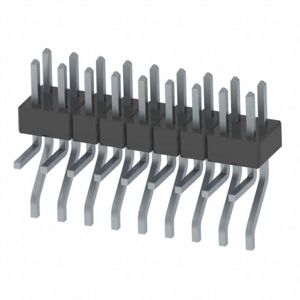

MMT-109-01-T-MT
TE Connectivity AMP Connectors

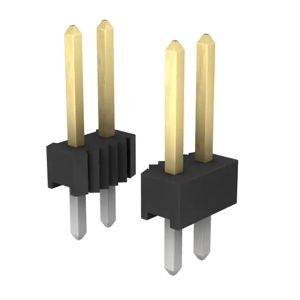

9-146253-0-22
Samtec Inc.

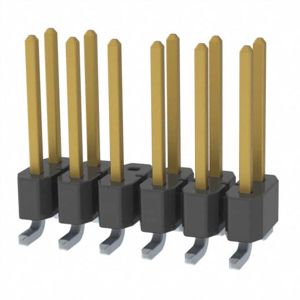

TSM-106-02-L-DV-008-P
Samtec Inc.

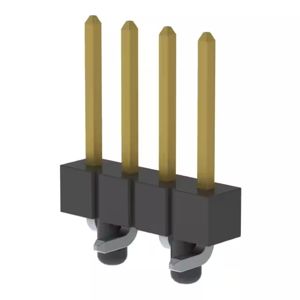

TSM-104-02-F-SV-A-TR
Preci-Dip

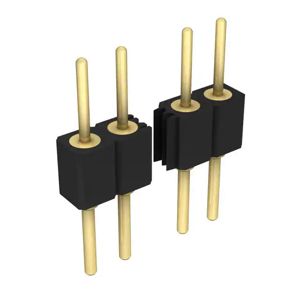

800-10-005-10-001101
