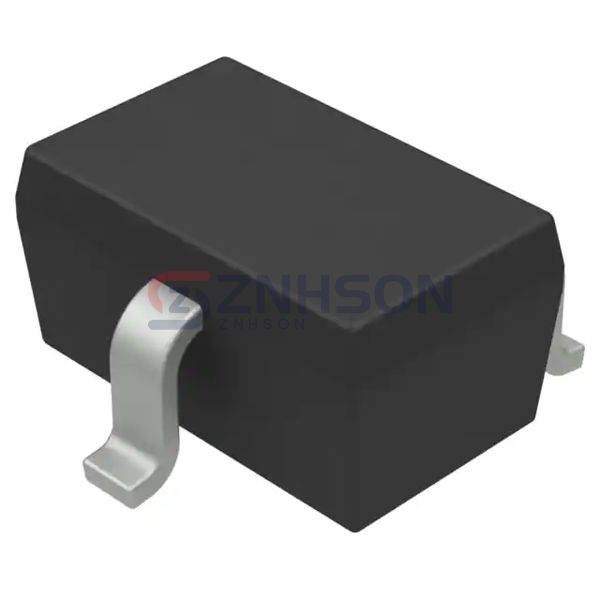

BAS70-05W,135
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY SCHOTTKY 70V SOT323
$0.04
Available to order
Reference Price (USD)
1+
$0.04301
500+
$0.0425799
1000+
$0.0421498
1500+
$0.0417197
2000+
$0.0412896
2500+
$0.0408595
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the BAS70-05W,135 by Nexperia USA Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Nexperia USA Inc.'s patented junction design, the BAS70-05W,135 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 70mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
