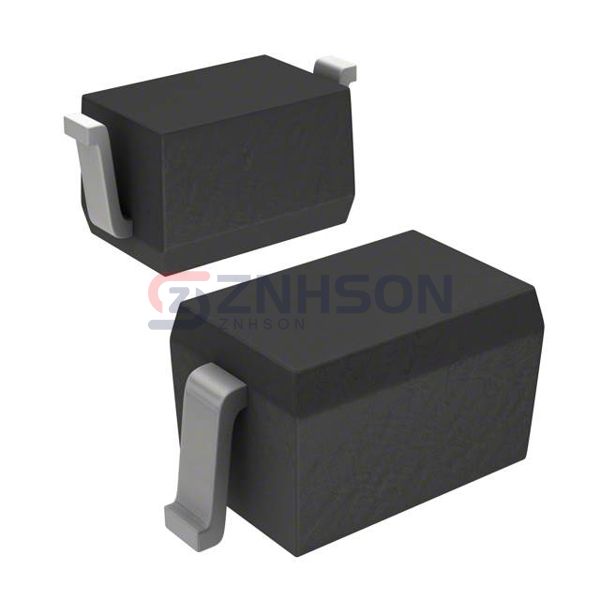

BAT20JFILM
STMicroelectronics
STMicroelectronics
DIODE SCHOTTKY 23V 1A SOD323
$0.43
Available to order
Reference Price (USD)
3,000+
$0.11739
6,000+
$0.11101
15,000+
$0.10463
30,000+
$0.10144
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT20JFILM by STMicroelectronics is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAT20JFILM ensures long-term reliability even in harsh operating conditions. Trust STMicroelectronics for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 23 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 620 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 12 µA @ 15 V
- Capacitance @ Vr, F: 30pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 150°C (Max)
