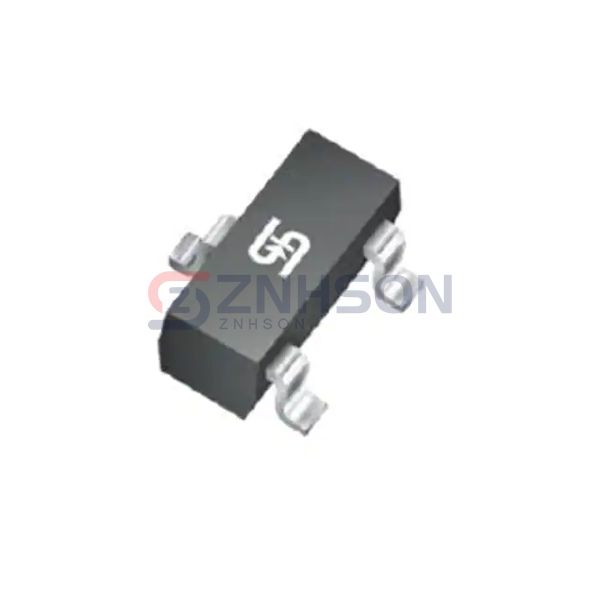

BAT54C RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 30V 200MA SOT23
$0.28
Available to order
Reference Price (USD)
3,000+
$0.03979
6,000+
$0.03460
15,000+
$0.02941
30,000+
$0.02768
75,000+
$0.02595
150,000+
$0.02422
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54C RFG rectifier array from Taiwan Semiconductor Corporation redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Taiwan Semiconductor Corporation's precision manufacturing ensures each BAT54C RFG meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
Related Products
Fairchild Semiconductor
FEP16FT
Rohm Semiconductor
RB508FM-40SFHT106
SMC Diode Solutions
MBR30150WT
Vishay General Semiconductor - Diodes Division
VS-6CSH02-M3/87A
Taiwan Semiconductor Corporation
TSD20H150CW
Taiwan Semiconductor Corporation
TSF40L100C
Vishay General Semiconductor - Diodes Division
VB40150C-E3/4W
Panjit International Inc.

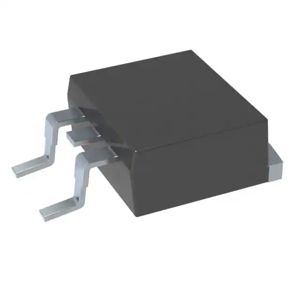

MBR8200DC_R2_00001
NXP USA Inc.

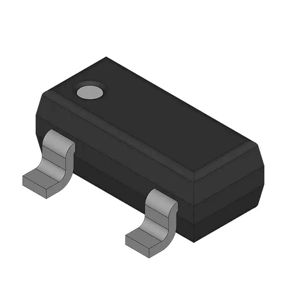

BAT54A/DG/B3215
