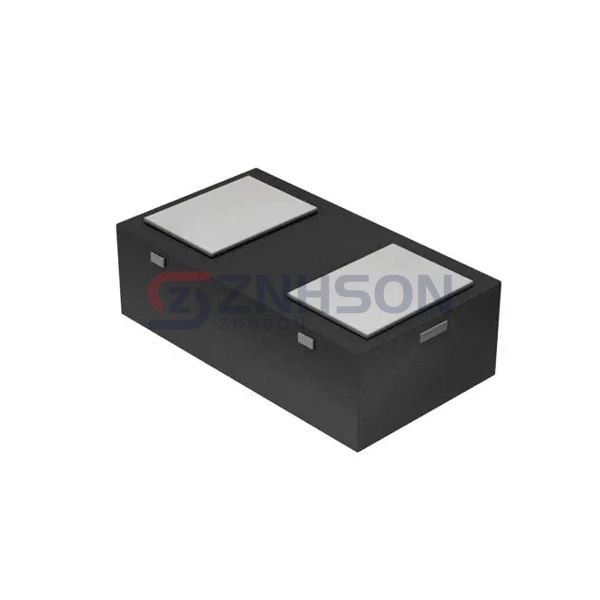

BAT54FN2_R1_00001
Panjit International Inc.
Panjit International Inc.
DFN 2L, SKY
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54FN2_R1_00001 from Panjit International Inc. is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panjit International Inc.'s BAT54FN2_R1_00001 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-DFN (1x0.6)
- Operating Temperature - Junction: -55°C ~ 125°C
Related Products
Vishay General Semiconductor - Diodes Division
GP10-4005E-E3/54
Panjit International Inc.
SD103BWS_R1_00001
Nexperia USA Inc.
PMEG4020EP-QX
Vishay General Semiconductor - Diodes Division
V15PM12HM3/H
Micro Commercial Co
SS22-LTP
Vishay General Semiconductor - Diodes Division
VS-80EBU04HF4
STMicroelectronics
STTH208UFY
Vishay General Semiconductor - Diodes Division

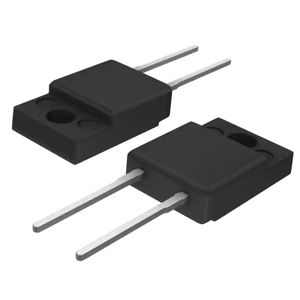

MBRF1090-E3/4W
