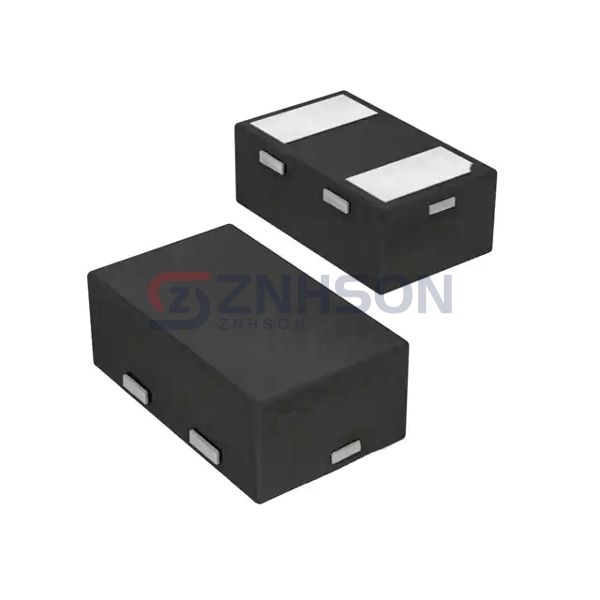

BAT54LPQ-7
Diodes Incorporated
Diodes Incorporated
SCHOTTKY DIODE X1-DFN1006-2 T&R
$0.07
Available to order
Reference Price (USD)
1+
$0.06798
500+
$0.0673002
1000+
$0.0666204
1500+
$0.0659406
2000+
$0.0652608
2500+
$0.064581
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54LPQ-7 by Diodes Incorporated is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAT54LPQ-7 ensures long-term reliability even in harsh operating conditions. Trust Diodes Incorporated for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: X1-DFN1006-2
- Operating Temperature - Junction: -65°C ~ 125°C
