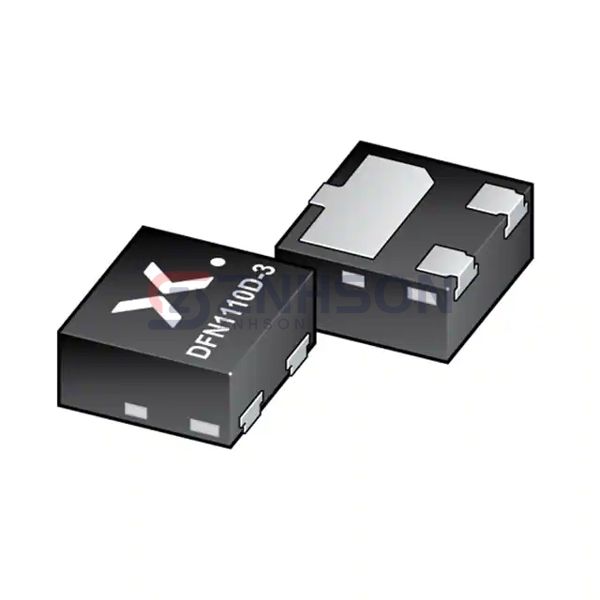

BAT54QBZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 30V 200MA 3DFN
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's efficiency with the BAT54QBZ single rectifier diode from Nexperia USA Inc.. This Discrete Semiconductor Product is crafted for precision, offering fast recovery times and high current handling. It is ideal for use in power supplies, motor controls, and lighting systems, where energy efficiency is crucial. The BAT54QBZ is also employed in agricultural machinery and marine electronics, proving its versatility across industries. Nexperia USA Inc.'s BAT54QBZ is synonymous with reliability, making it a trusted choice for engineers worldwide.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1110D-3
- Operating Temperature - Junction: 150°C
