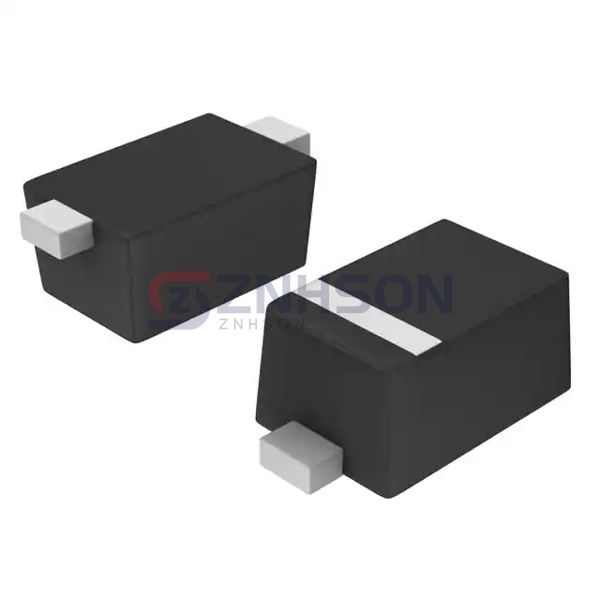

BAT54XV2T5G
onsemi
onsemi
DIODE SCHOTTKY 30V 200MA SOD523
$0.29
Available to order
Reference Price (USD)
8,000+
$0.03490
16,000+
$0.02989
24,000+
$0.02822
56,000+
$0.02655
200,000+
$0.02488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54XV2T5G by onsemi is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAT54XV2T5G ensures long-term reliability even in harsh operating conditions. Trust onsemi for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Operating Temperature - Junction: -55°C ~ 125°C
