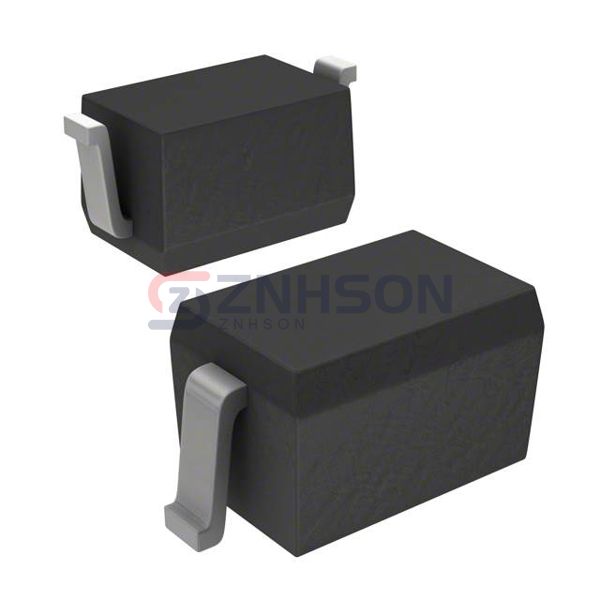

BAT60JFILM
STMicroelectronics
STMicroelectronics
DIODE SCHOTTKY 10V 3A SOD323
$0.39
Available to order
Reference Price (USD)
3,000+
$0.08975
6,000+
$0.08524
15,000+
$0.07847
30,000+
$0.07396
75,000+
$0.07171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT60JFILM from STMicroelectronics is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust STMicroelectronics's BAT60JFILM for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 10 V
- Current - Average Rectified (Io): 3A (DC)
- Voltage - Forward (Vf) (Max) @ If: 580 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 6 µA @ 10 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 150°C (Max)
