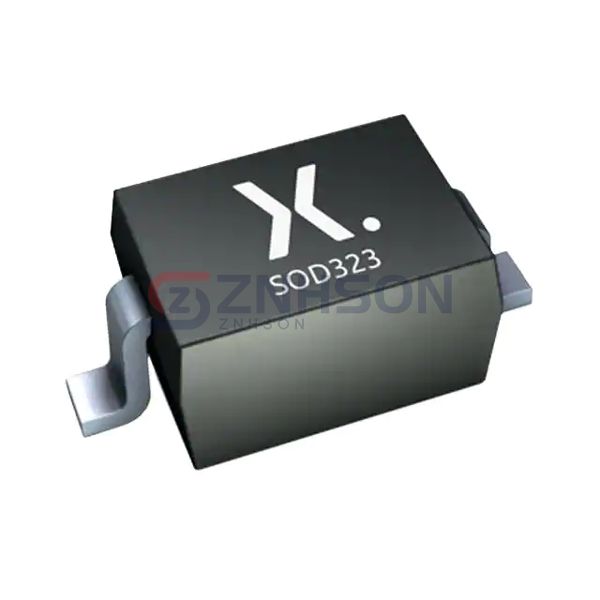

BAT760F
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 20V 1A SOD323
$0.05
Available to order
Reference Price (USD)
10,000+
$0.09425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT760F by Nexperia USA Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAT760F ensures long-term reliability even in harsh operating conditions. Trust Nexperia USA Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 25pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C (Max)
