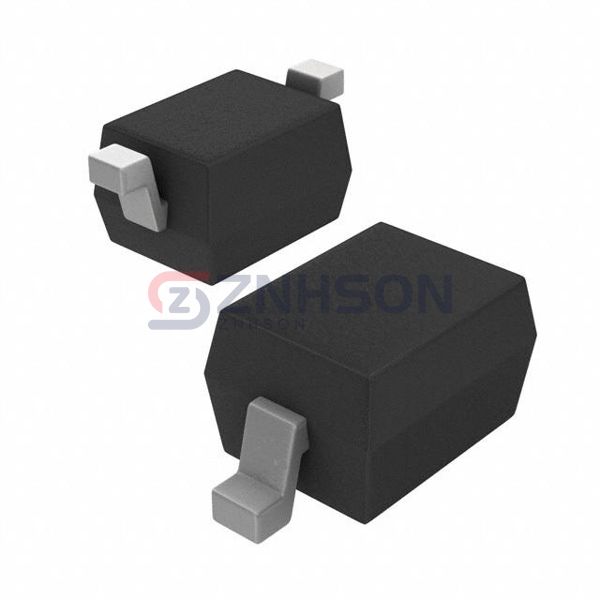

BAT760Q-7
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 30V 1A SOD323
$0.45
Available to order
Reference Price (USD)
3,000+
$0.10000
6,000+
$0.09500
15,000+
$0.08750
30,000+
$0.08250
75,000+
$0.08000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT760Q-7 by Diodes Incorporated is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAT760Q-7 ensures long-term reliability even in harsh operating conditions. Trust Diodes Incorporated for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 25pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: -65°C ~ 150°C
Related Products
Vishay General Semiconductor - Diodes Division
VT3080S-E3/4W
Diodes Incorporated
B350AQ-13-F
Taiwan Semiconductor Corporation
ES1BL R3G
Rohm Semiconductor
RSX501LAM20TR
SMC Diode Solutions
S4D05120G
Toshiba Semiconductor and Storage
DSR01S30SL,L3F
IXYS
DSEI30-10AR
Central Semiconductor Corp
CMAD6001 TR PBFREE
Vishay General Semiconductor - Diodes Division

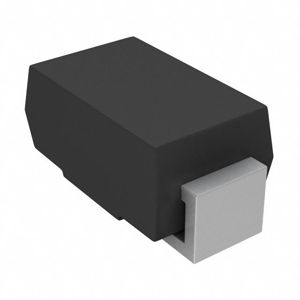

US1M-M3/5AT
