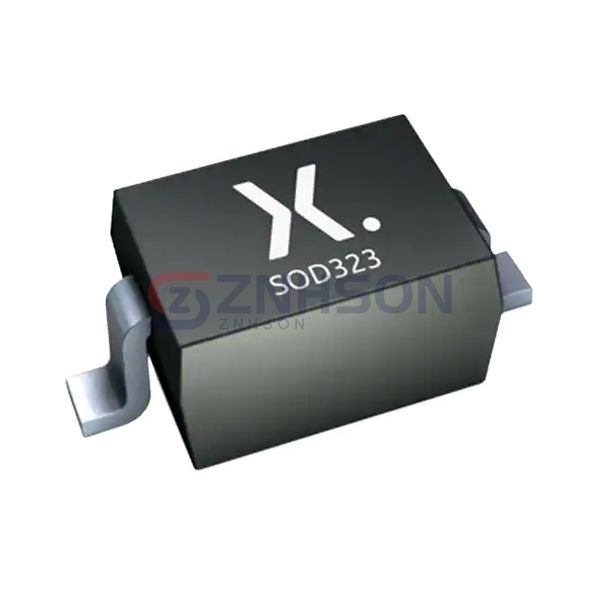

BAT760Z
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 20V 1A SOD323
$0.08
Available to order
Reference Price (USD)
30,000+
$0.09100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the BAT760Z single rectifier diode by Nexperia USA Inc.. As a vital component in the Discrete Semiconductor Products range, this diode offers superior rectification with minimal power loss. Its high-temperature tolerance and fast switching make it ideal for use in electric vehicles, industrial automation, and renewable energy systems. The BAT760Z is also a preferred choice for consumer electronics, including TVs and audio equipment, where efficiency and reliability are paramount. Choose Nexperia USA Inc.'s BAT760Z for advanced semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 25pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C (Max)
