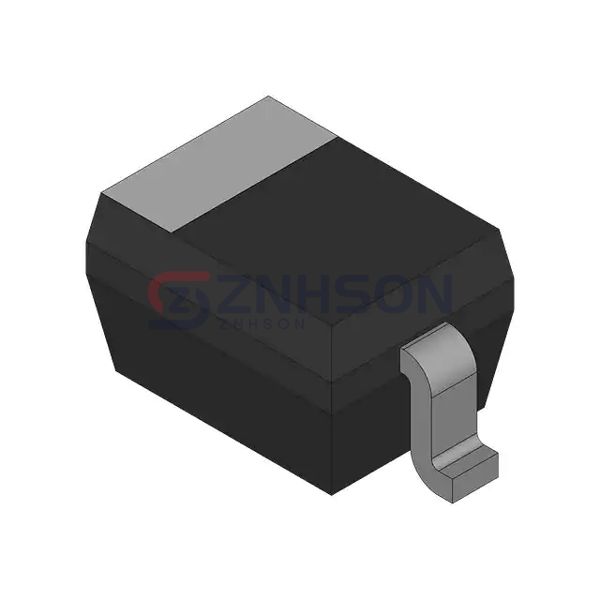

BAV20WS-AU_R1_000A1
Panjit International Inc.
Panjit International Inc.
SOD-323, SWITCHING
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV20WS-AU_R1_000A1 by Panjit International Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BAV20WS-AU_R1_000A1 ensures long-term reliability even in harsh operating conditions. Trust Panjit International Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 50 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 150 V
- Capacitance @ Vr, F: 5pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: -55°C ~ 150°C
