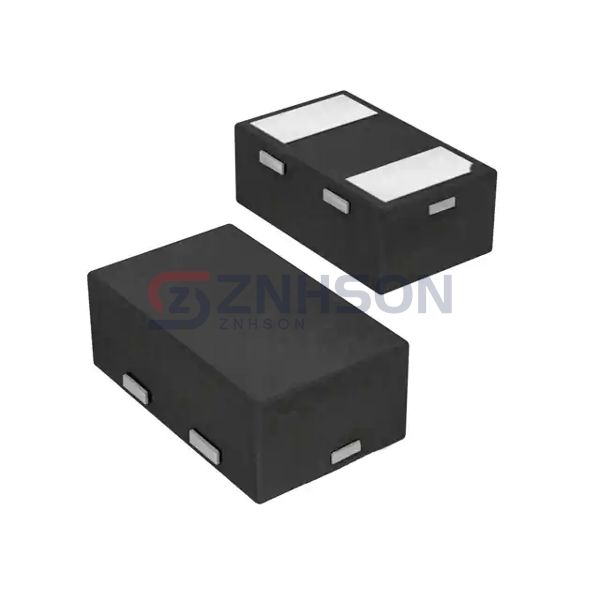

BAV5004LP-7B
Diodes Incorporated
Diodes Incorporated
DIODE GEN PURP 350V 300MA 2DFN
$0.41
Available to order
Reference Price (USD)
10,000+
$0.06534
30,000+
$0.06171
50,000+
$0.05808
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV5004LP-7B from Diodes Incorporated is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Diodes Incorporated's BAV5004LP-7B for superior performance and durability in demanding environments.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 350 V
- Current - Average Rectified (Io): 300mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.29 V @ 200 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 50 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 240 V
- Capacitance @ Vr, F: 2.5pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: X1-DFN1006-2
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
SMC Diode Solutions
ST1545AX
Panjit International Inc.
MBR3200_R2_00001
Vishay General Semiconductor - Diodes Division
V10P8-M3/86A
NXP USA Inc.
PMEG2005AESF/S500315
Panjit International Inc.
SBA140CS-AU_R1_000A1
onsemi
1N5406RLG
MACOM Technology Solutions

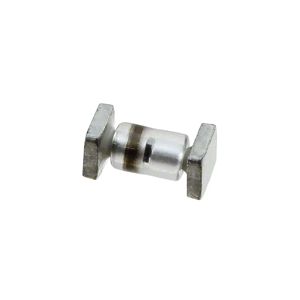

JANTX1N6642US
Comchip Technology

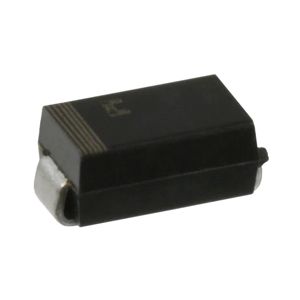

CDBA1150-HF
