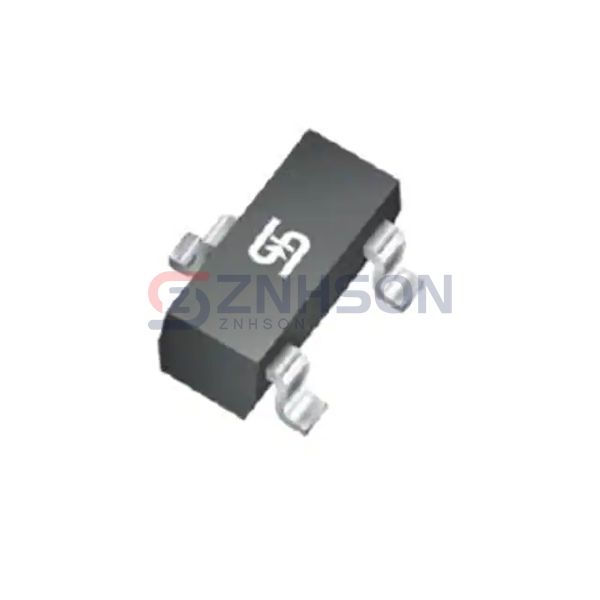

BAV99 RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY GP 70V 200MA SOT23
$0.23
Available to order
Reference Price (USD)
3,000+
$0.02984
6,000+
$0.02691
15,000+
$0.02340
30,000+
$0.02106
75,000+
$0.01872
150,000+
$0.01638
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV99 RFG rectifier array from Taiwan Semiconductor Corporation redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Taiwan Semiconductor Corporation's precision manufacturing ensures each BAV99 RFG meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
