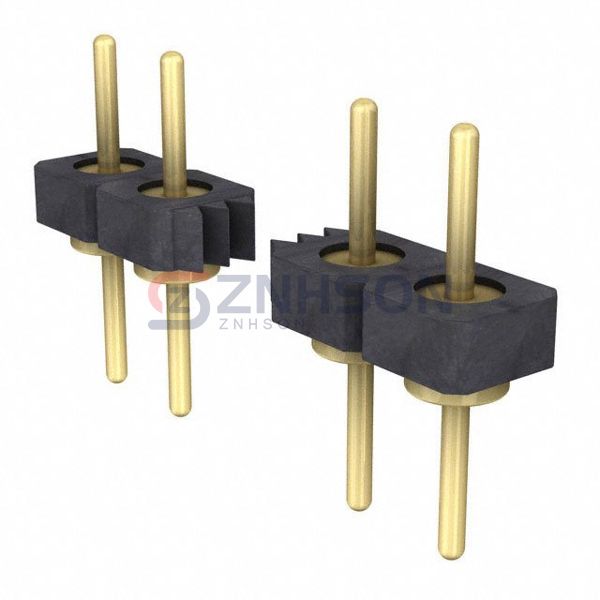

BBL-117-G-E
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 17POS 2.54MM
$7.44
Available to order
Reference Price (USD)
1+
$6.01000
10+
$5.76200
25+
$5.26120
50+
$5.01080
100+
$4.76020
250+
$4.25916
500+
$4.00860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BBL-117-G-E male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 17
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.070" (1.78mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Nickel
- Contact Material: -
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
