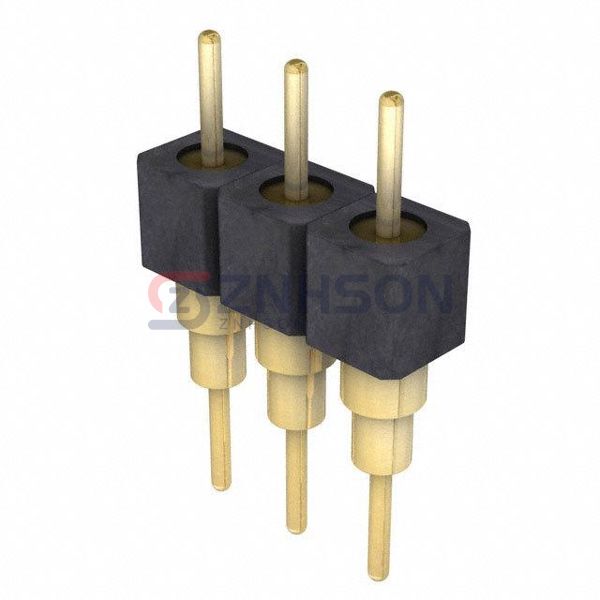

BBS-103-G-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 3POS 2.54MM
$1.55
Available to order
Reference Price (USD)
1+
$1.29000
10+
$1.13000
25+
$1.06400
50+
$1.01940
100+
$0.97520
250+
$0.88652
500+
$0.79786
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the BBS-103-G-A rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the BBS-103-G-A is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.460" (11.68mm)
- Insulation Height: 0.211" (5.35mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Nickel
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
