BC035-64-A-0200-0300-L-G
GCT
GCT
64W, 1.0MM PITCH PIN HDR, DIL, T
$2.94
Available to order
Reference Price (USD)
1+
$2.94441
500+
$2.9149659
1000+
$2.8855218
1500+
$2.8560777
2000+
$2.8266336
2500+
$2.7971895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

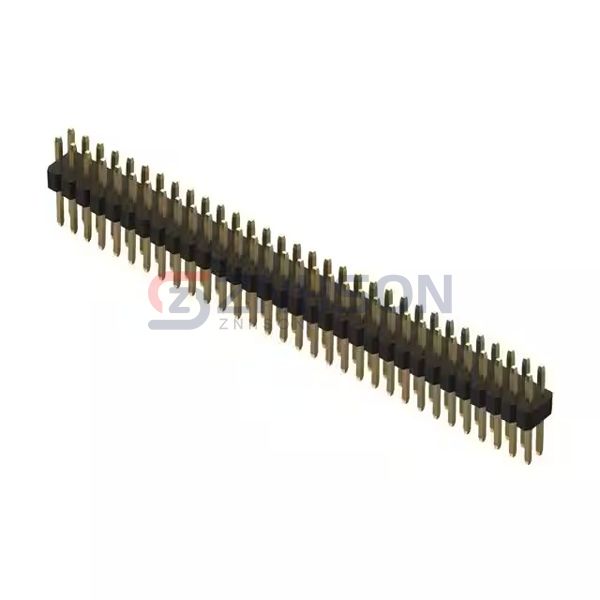

Upgrade your electronic designs with the BC035-64-A-0200-0300-L-G rectangular connector header by GCT. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the BC035-64-A-0200-0300-L-G ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust GCT for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.244" (6.20mm)
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
