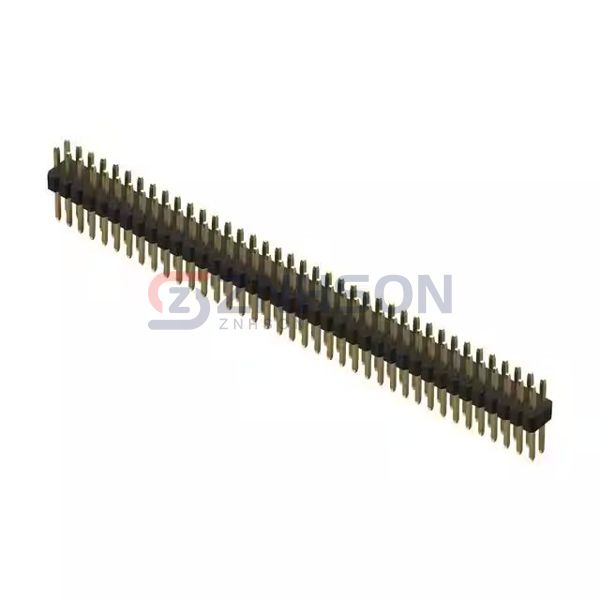

BC035-78-A-0200-0300-L-G
GCT
GCT
78W, 1.0MM PITCH PIN HDR, DIL, T
$3.55
Available to order
Reference Price (USD)
1+
$3.55005
500+
$3.5145495
1000+
$3.479049
1500+
$3.4435485
2000+
$3.408048
2500+
$3.3725475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC035-78-A-0200-0300-L-G from GCT is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the BC035-78-A-0200-0300-L-G offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose GCT for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 78
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.244" (6.20mm)
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Würth Elektronik
620104131822
Molex
5013310607
Samtec Inc.
FTSH-117-01-FM-DV-K-P-TR
Harwin Inc.
G125-MV11205L1R
Amphenol ICC (FCI)
68016-405HLF
Samtec Inc.
HTST-106-01-L-DV
TE Connectivity AMP Connectors
5-147324-2
Samtec Inc.

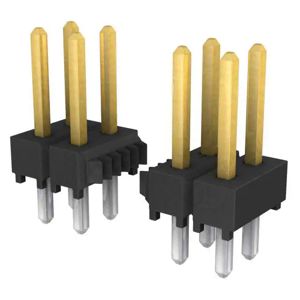

TSW-136-07-S-D
