BC050-32A-K0-0380-0160-0480-LD
GCT
GCT
32W,1.0MM PITCH ELEV PIN HDR,DIL
$1.89
Available to order
Reference Price (USD)
1+
$1.89042
500+
$1.8715158
1000+
$1.8526116
1500+
$1.8337074
2000+
$1.8148032
2500+
$1.795899
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC050-32A-K0-0380-0160-0480-LD by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BC050-32A-K0-0380-0160-0480-LD supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
TE Connectivity AMP Connectors
4-103322-0-01
Preci-Dip
892-70-080-20-001101
Harwin Inc.

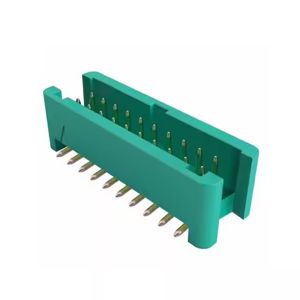

G125-MS15005L0R
Samtec Inc.

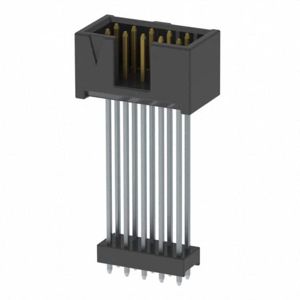

ZSS-105-08-L-D-1240
Molex

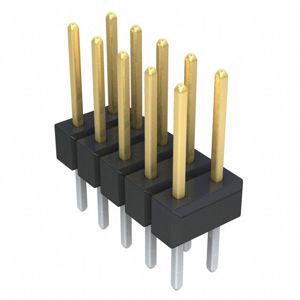

0702800673
Samtec Inc.
TSM-131-03-F-DV-A
Samtec Inc.

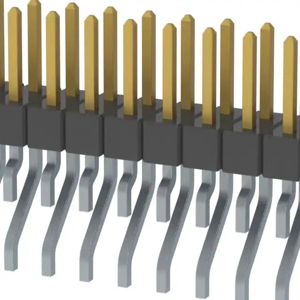

MMT-120-02-S-DH
NorComp Inc.

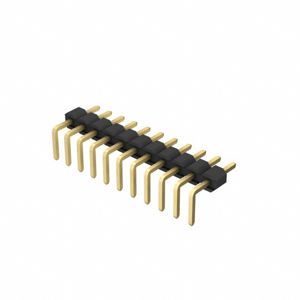

27631102RP2
