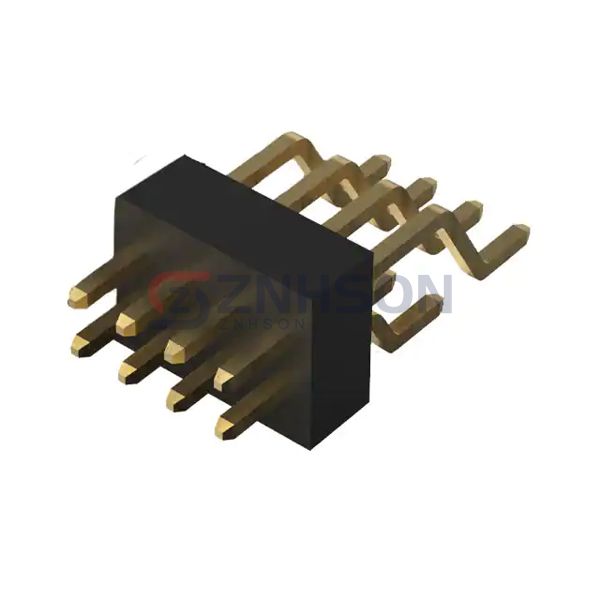

BC057-08-A-A-0150-L-C
GCT
GCT
8W,1.0MM PITCH PIN HDR,DIL, SMT,
$1.56
Available to order
Reference Price (USD)
1+
$1.56000
500+
$1.5444
1000+
$1.5288
1500+
$1.5132
2000+
$1.4976
2500+
$1.482
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC057-08-A-A-0150-L-C by GCT is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. GCT delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.059" (1.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.122" (3.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
FTSH-107-05-F-DV-A-P
Amphenol ICC (FCI)
95278-402-16LF
Samtec Inc.
TSW-105-09-S-S
3M
929834-04-04
TE Connectivity AMP Connectors
1-104433-0
Molex
0022051022

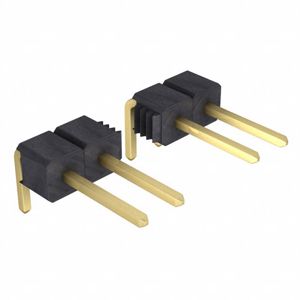

Preci-Dip
890-70-034-20-002101
Samtec Inc.
TMM-124-04-T-D-SM
Samtec Inc.

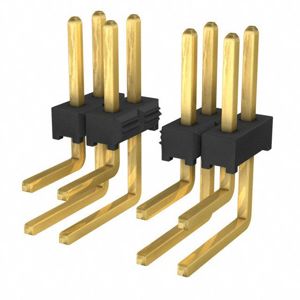

TMM-140-01-G-D-RA
