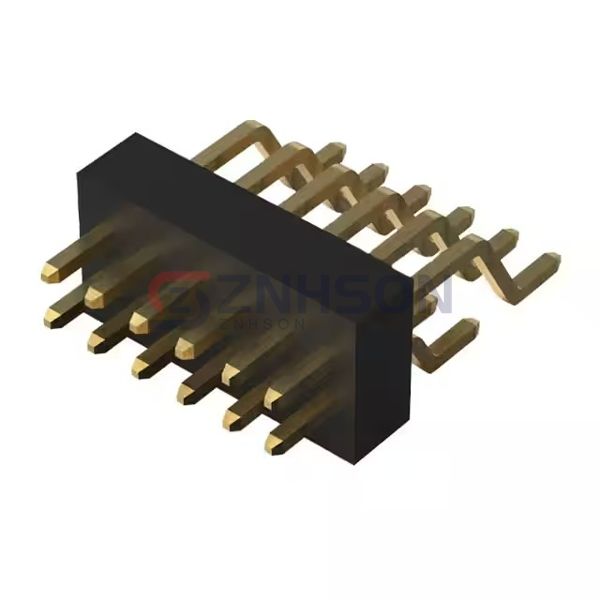

BC057-12-A-A-0150-L-C
GCT
GCT
12W,1.0MM PITCH PIN HDR,DIL, SMT
$2.06
Available to order
Reference Price (USD)
1+
$2.06000
500+
$2.0394
1000+
$2.0188
1500+
$1.9982
2000+
$1.9776
2500+
$1.957
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the BC057-12-A-A-0150-L-C rectangular connector header from GCT. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the BC057-12-A-A-0150-L-C meets the highest industry standards. GCT provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.059" (1.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.122" (3.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
ZSS-105-05-T-D-915
TE Connectivity AMP Connectors
104345-3
Amphenol ICC (FCI)
57102-G06-15LF
Molex

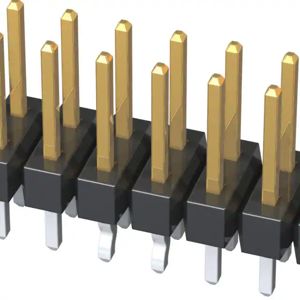

0702871219
Samtec Inc.

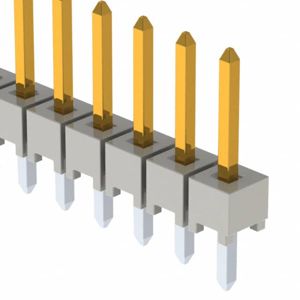

HTSW-110-07-LM-S
Samtec Inc.

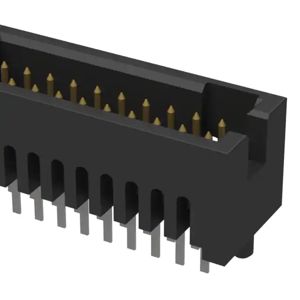

TFC-120-21-L-D-A
Samtec Inc.

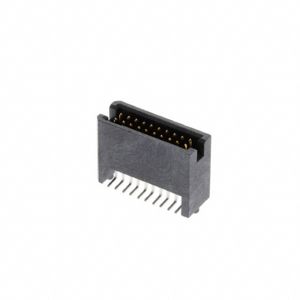

TFC-110-32-L-D-A
