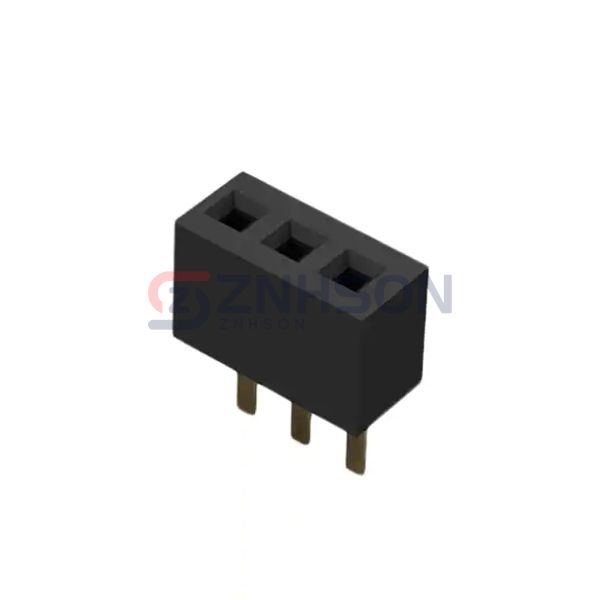

BC065-03-A-L-D
GCT
GCT
3POS 1.0MM PITCH SOCKET, SIL, TH
$0.72
Available to order
Reference Price (USD)
1+
$0.72000
500+
$0.7128
1000+
$0.7056
1500+
$0.6984
2000+
$0.6912
2500+
$0.684
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC065-03-A-L-D GCT Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, GCT provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 3
- Number of Positions Loaded: All
- Pitch - Mating: 0.039" (1.00mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.083" (2.10mm)
- Contact Length - Post: 0.071" (1.80mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250V
Related Products
Preci-Dip
801-87-017-10-003101
Samtec Inc.
SQW-109-01-L-D-VS-A-P
Preci-Dip
833-83-018-30-001101
Samtec Inc.
HLE-104-02-F-DV-BE
Samtec Inc.
SQW-114-01-H-D-VS-A
Preci-Dip
803-87-028-65-410101
Samtec Inc.
SL-119-G-19
Mill-Max Manufacturing Corp.
311-93-108-61-001000
Samtec Inc.

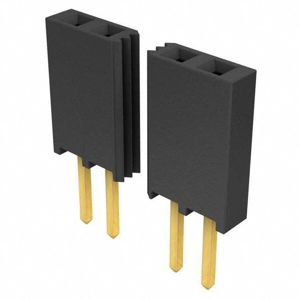

SSQ-105-02-G-S
