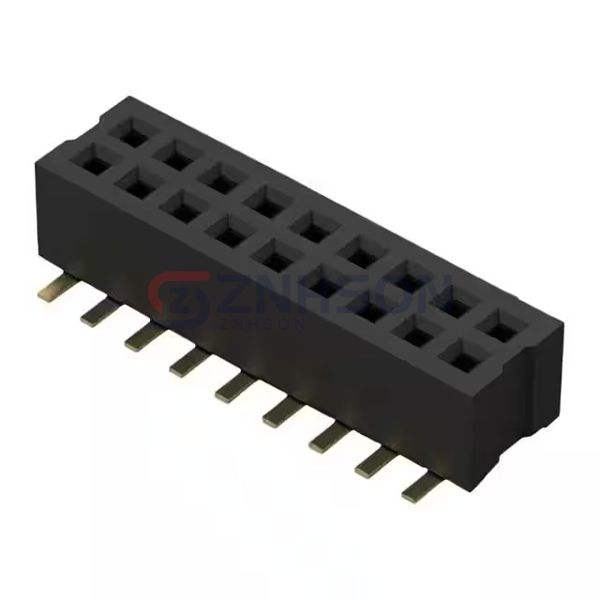

BC085-18-A-0390-L-D
GCT
GCT
18W, 1.0MM PITCH SOCKET, DIL, SM
$0.86
Available to order
Reference Price (USD)
1+
$0.85869
500+
$0.8501031
1000+
$0.8415162
1500+
$0.8329293
2000+
$0.8243424
2500+
$0.8157555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with BC085-18-A-0390-L-D GCT Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. GCT connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom or Top Entry
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.039" (1.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.089" (2.26mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
