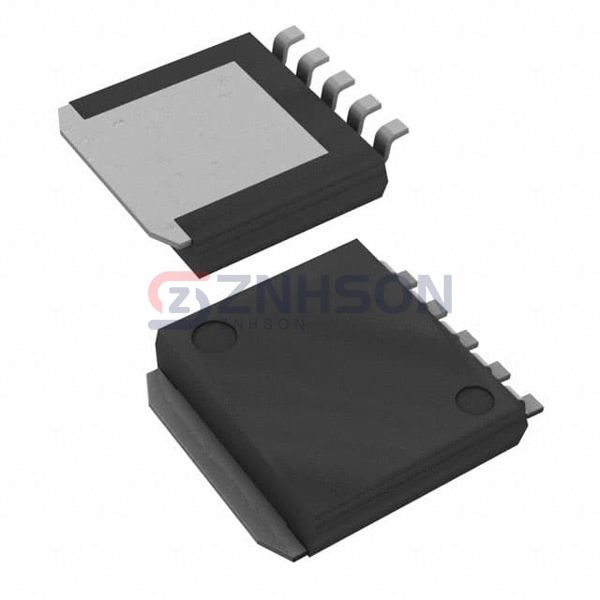

BD800M5WHFP-CTR
Rohm Semiconductor
Rohm Semiconductor
IC REG LIN POS ADJ 500MA HRP-5
$2.85
Available to order
Reference Price (USD)
1+
$2.85000
500+
$2.8215
1000+
$2.793
1500+
$2.7645
2000+
$2.736
2500+
$2.7075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BD800M5WHFP-CTR from Rohm Semiconductor is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 16V
- Voltage Dropout (Max): 0.87V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 34 µA
- Current - Supply (Max): 53 µA
- PSRR: 70dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package: HRP-5
