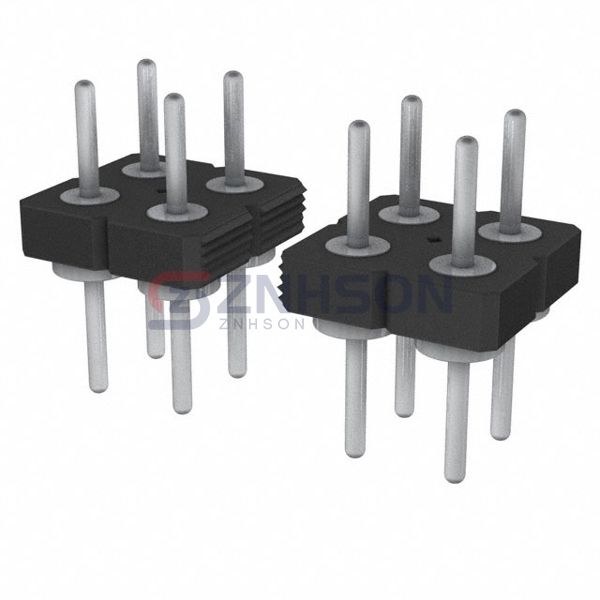

BDL-120-T-E
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 40POS 2.54MM
$9.37
Available to order
Reference Price (USD)
1+
$5.65000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the BDL-120-T-E rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.070" (1.78mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
